The Mobile Access Facility™
The Mobile Access Facility™ (MAF™) is accessible transportable accommodation with a powered platform lift and roll-in shower.
Images are for illustrative purposes only.
The MAF™ is a self-contained accessible unit on a road-transportable trailer. It has a powered platform lift at the side door and steps at the rear. It suits guests who can operate the lift and doors themselves, or with a carer they bring. The unit is unstaffed and self-contained. The doorway, shower, toilet and bed height are already sorted, so none of them ends a trip early.
Getting in
Two ways in: a powered platform lift at the side door, and steps at the rear. The lift carries you and your chair to floor level; the door slides open on a touch pad so there is nothing to grip or pull.
Platform lift rated load: 300 kg. Entry door clear accessway: 840 mm minimum.
The bathroom
The shower floor is level with the room, so you roll straight in. There is a fold-down seat, a hand shower on a slide rail, and fixed rails at the shower and at the toilet. The toilet is at transfer height with clear space to pull alongside. The floor is slip-resistant throughout, and hot water is temperature-limited at the tap.
Sleeping and living
One profiling bed, plus a spare bed. The profiling bed raises, lowers and sits you up on a handset. There is clear space beside the bed for a carer or a second chair. Climate control, on-demand hot water, a fridge-freezer, a microwave, a television, a height-adjustable desk, electric privacy blinds and USB and power points at the bed and the desk.
Measurements
| Item | Measurement |
|---|---|
| Doorways, clear width | 840 mm minimum (the bathroom door is the narrowest) |
| Turning circle | 1500 mm |
| Platform lift rated load | 300 kg |
| Bathroom, internal size | 2620 x 2330 mm (about 6.1 m²) |
| Basin height (top) | 830 mm above floor |

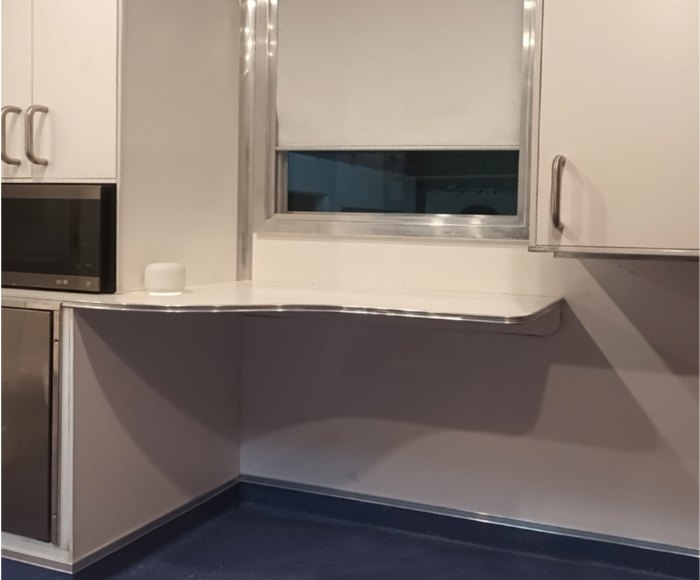

| Kitchen bench height | 800 mm above floor |
| Bed height (base, without mattress) | 400 to 800 mm, electric |
| Clear space under the bed | 200 mm at the lowest setting |
| Space beside the bed | 1540 mm |
| Bed maximum user weight | 140 kg |
| Over-bed table height | 740 to 1150 mm |
| Stair entry | 4 steps: 200 mm riser, 300 mm going, 1010 mm wide, handrail at 850 mm |
Will my chair fit?
Tell us your chair’s width and length and we will compare it with the MAF™. We reply with a yes or no, plus a photo showing the tape measure in place.
Standard inclusions
Standard on the MAF Metro:
- Climate control
- On-demand hot water
- Freshwater tank
- Powered platform lift
- Level shower entry
- Accessible toilet
- Reach-adjusted wardrobe
- Grab rails
- Fold-down shower seat
- Slip-resistant floors
- Profiling bed
- Fridge-freezer
- Microwave
- Television
- Fresh air system
- USB and 12 V/240 V outlets
- Wi-Fi (network dependent)
- Remote monitoring
- Smart climate scheduling
- External security lighting
- Acoustic insulation
- Emergency egress lighting
- Electric privacy blinds
- Security deadlock
- Digital door access log
- Smoke and CO detector
- Fire extinguisher
- Fire blanket
- First aid kit
- Temperature-limited hot water
- Waterproof wall linings
Configuration and options are confirmed on quote.
Floor plan
Configurations
The MAF™ comes in three configurations, each based on the same core measurements.
Compare MAF™ configurations
| Feature | MAF Metro | MAF Remote | MCF |
|---|---|---|---|
| Climate control | Standard | Standard | Standard |
| On-demand hot water | Standard | Standard | Standard |
| Freshwater tank | Standard | Standard | Standard |
| Powered platform lift | Standard | Standard | Standard |
| Level shower entry | Standard | Standard | Standard |
| Accessible toilet | Standard | Standard | Standard |
| Reach-adjusted wardrobe | Standard | Standard | Standard |
| Grab rails | Standard | Standard | Standard |
| Fold-down shower seat | Standard | Standard | Standard |
| Slip-resistant floors | Standard | Standard | Standard |
| Profiling bed | Standard | Standard | Standard |
| Fridge-freezer | Standard | Standard | Standard |
| Microwave | Standard | Standard | Standard |
| Television | Standard | Standard | Available as an option |
| Fresh air system | Standard | Standard | Standard |
| USB and 12 V/240 V outlets | Standard | Standard | Standard |
| Wi-Fi (network dependent) | Standard | Standard | Standard |
| Remote monitoring | Standard | Standard | Standard |
| Smart climate scheduling | Standard | Standard | Standard |
| External security lighting | Standard | Standard | Standard |
| Acoustic insulation | Standard | Standard | Standard |
| Emergency egress lighting | Standard | Standard | Standard |
| Electric privacy blinds | Standard | Standard | Standard |
| Security deadlock | Standard | Standard | Standard |
| Digital door access log | Standard | Standard | Standard |
| Smoke and CO detector | Standard | Standard | Standard |
| Fire extinguisher | Standard | Standard | Standard |
| Fire blanket | Standard | Standard | Standard |
| First aid kit | Standard | Standard | Standard |
| Temperature-limited hot water | Standard | Confirmed on quote | Confirmed on quote |
| Waterproof wall linings | Standard | Confirmed on quote | Confirmed on quote |
| Motorised awning | Optional | Standard | Standard |
| Manual awning | Optional | Standard | Not available |
| Motorised height-adjustable desk | Optional | Standard | Standard |
| Full-length mirror | Optional | Standard | Standard |
| Clothes washer (3 kg) | Optional | Optional | Standard |
| Freshwater tank size (200 L or 420 L) | Optional | Confirmed on quote | Confirmed on quote |
| Battery and solar package (110 A or 200 A) | Optional | Standard (110 A); 200 A Optional | Standard (110 A); 200 A Optional |
| Greywater and septic management | Optional | Optional | Standard |
| Automatic 4G/satellite failover | Optional | Standard | Standard |
| Emergency SOS / duress alert | Available as an option | Standard | Standard |
| Welfare check occupancy sensor | Available as an option | Standard | Standard |
| Onboard generator | Not available | Standard | Optional |
Price and lead time
From $155,000 AUD ex GST. Lead time depends on order volume. Configuration, delivery and commissioning are confirmed on quote. For commercial quantities, please contact us.
We work with individuals who may receive NDIS funding.
Engineering and compliance
Engineered to a proprietary access standard that exceeds minimum regulatory requirements. Purpose-built for the Australian regulatory environment. Compliance documentation available on request. Patent Pending.
Questions people ask
Who is the MAF™ for?
People with physical access needs who want to travel, stay near family, or live where they choose, on their own or with a carer or support worker they arrange. It is not designed for people living with cognitive impairment, because it is unstaffed and relies on the guest operating the lift and doors.
Do you provide care or support workers?
No. Fortitude Essentials™ provides accommodation and infrastructure only. We do not provide care, nursing or supervision, and we do not make medical claims. You are welcome to bring your own support worker or carer; there is room for them.
How do I get in with a wheelchair?
A powered platform lift at the side door takes you and your chair up to floor level. The door opens on a touch pad. There are also steps at the rear for anyone who prefers them.
Can I roll into the shower?
Yes. The shower floor is level with the bathroom floor. There is a fold-down seat, a hand shower on a slide rail and fixed rails.
Will my powered chair fit?
Doorway, turning circle and lift measurements are listed above. Use the chair check to send us your chair’s width and length, and we will reply with a yes or no and a photo with the tape in shot.
Where is it set up?
For stays, at a caravan park we arrange. Stays are $350 AUD per night with a two-night minimum, and the site fee is included. For hire and purchase, at your site after a site check for access, ground and services. We currently deliver within Western Australia only.
Can NDIS funding be used?
We work with individuals who may receive NDIS funding. Holiday accommodation is generally not funded, so please speak with your plan manager or support coordinator about whether a stay can be claimed. A unit purchase is high-cost assistive technology and needs an assessor’s report and a written quote. The report comes from your own assessor; we provide the written quote.
Is the design protected?
Yes. The Mobile Access Facility™ is Patent Pending. Manufacturers and operators can request a briefing under a non-disclosure agreement.
What is included when I buy one?
A handover pack comes with every unit. Its contents are confirmed on your quote.
